In Vivo Optical Imaging System

The f0.7 super lens greatly increases the amount of light entering per unit time, thereby effectively shortening the exposure time, and is especially suitable for bioluminescence imaging of Luc reporter gene detection

Fluorescence imaging uses pulsed LED light source, 7 channels, and the excitation intensity is higher than that of halogen lamp. Based on scanning mode, excitation uniformity ≥99%;

Fully automatic control of 7-bit emission filter wheel, equipped with 6 special narrow-wave filters, covering 400 ~ 900nm, to meet the detection needs of various dyes;

Equipped with a dedicated mouse thermostat compatible with mouse anesthesia system, the maximum flux can reach 5 mice;

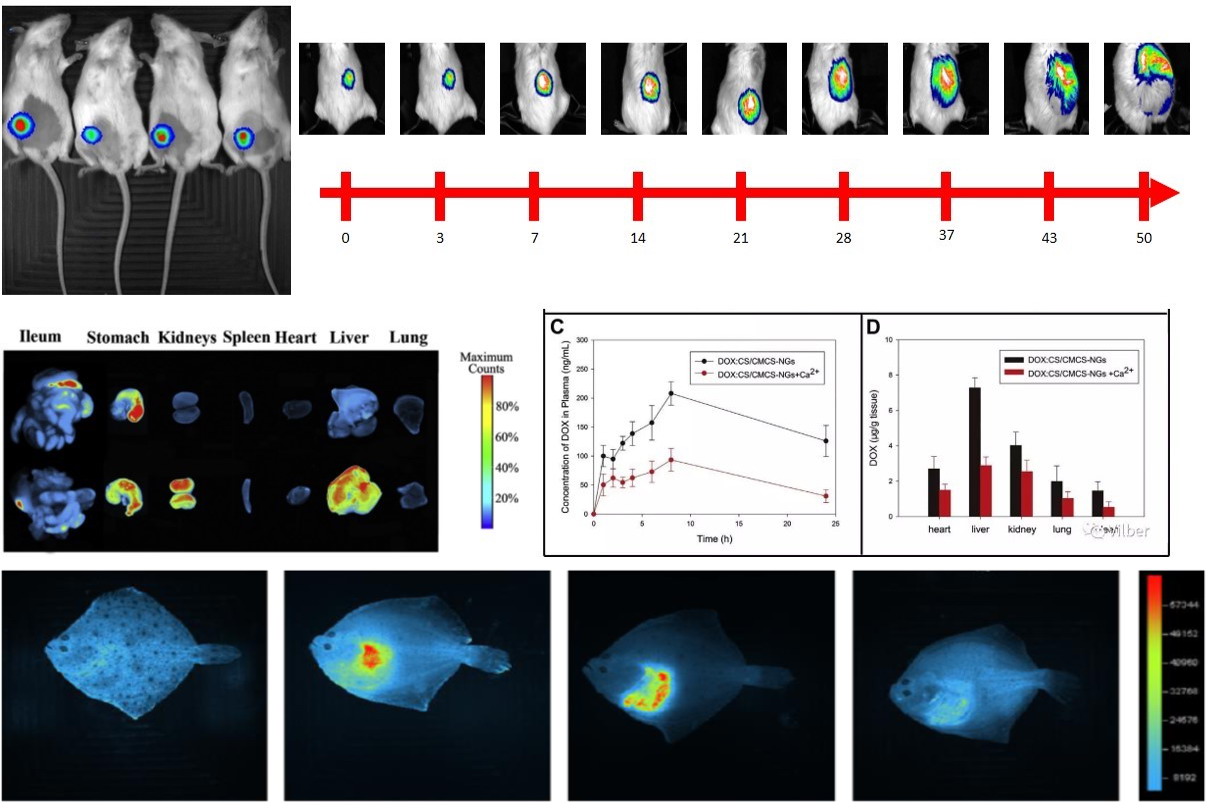

In vivo imaging function：

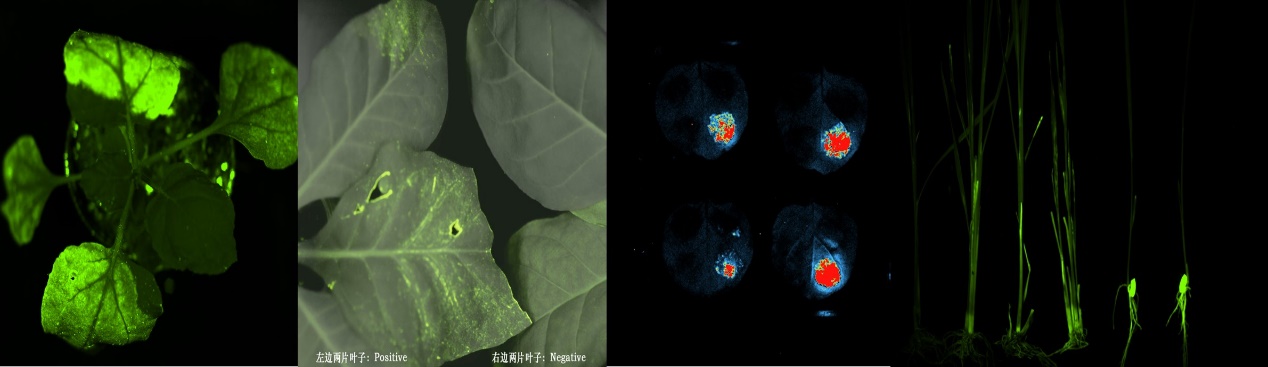

Plant imaging function：

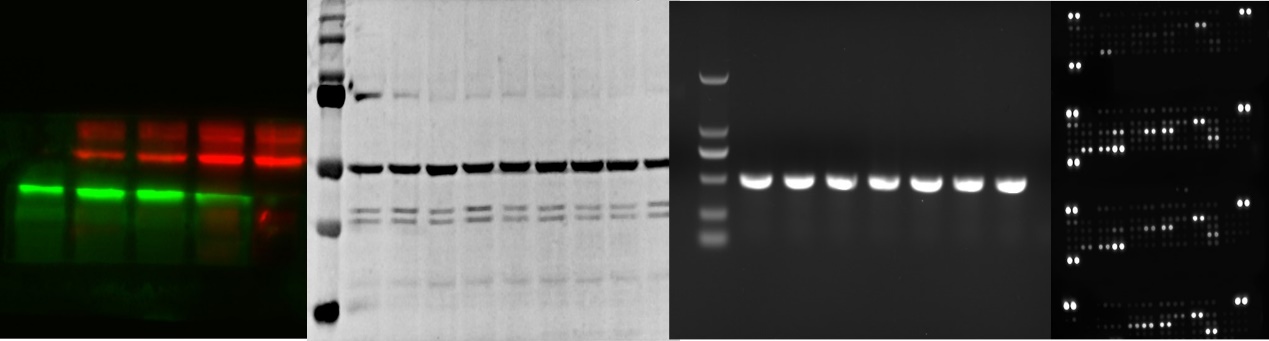

Gel imaging function：

CCD camera

CCD camera: a new generation of deep refrigeration scientific research level 0 CCD camera @ -90 ℃, 0 defects

Sensitive range: 400 ~ 900nm

CCD dark current: ≤0.0001e / p / s, read noise ≤2e / p / s

Optical lens: V.070 electric control, aperture value ≤0.70, increase the amount of light entering per unit time, especially suitable for bioluminescence imaging

Fully closed camera

Dark box: software controlled light source switch, automatic light adjustment, auto focus, auto exposure

Excitation light source: 7-channel pulsed LED light source, covering blue, green, red, far-red and near-infrared bands, excitation channels can be customized

Light source life: LED has long service life, 5000 hours guarantee more than 90% output

Filter wheel: 7-bit emission filter wheel, equipped with 6 dedicated narrow-wave filters, dual magnetron sputtering coating filters, applicable spectral range: 400 ~ 900nm

Anesthesia & Respiratory Device

Anesthesia system: compatible with mouse anesthesia system, used for anesthesia of laboratory animals

Breathing device: animal breathing device can choose single interface, three interfaces and five interfaces, up to 5 mice can be simultaneously anesthetized or a single interface for rat anesthesia

Exhaust gas recovery: loaded with high-quality adsorbent ≥1kg, can absorb ≥200g isoflurane

Temperature control device: the temperature control table of the mouse, which controls the constant temperature for a long time to avoid the temperature loss of the mouse under the anesthesia state of the mouse.

Acquisition & Analysis Software

APPS STUDIO function, covering more than 40 experimental methods, and containing the relevant excitation and emission information of various dyes or fluorescent probes, including: GFP, YFP, Pro-Q Emerald 300, Sypro-Ruby, FITC, DAPI, Alexa Fluor680, 700, 750, Cy3, Cy5, Cy5.5, etc.
